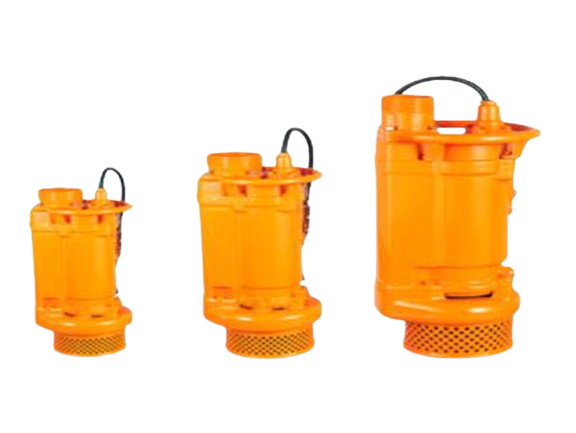

KB Series – Submersible Slurry Pumps for Heavy-Duty Dewatering & Abrasive Solids
KB submersible pumps are engineered for tough environments where abrasives, solids, and continuous duty demand maximum durability. Featuring a built-in agitator and top discharge for motor cooling, KB pumps deliver consistent performance in mining, construction, and slurry pits.
-
Top discharge design for efficient motor cooling
-
Built-in agitator stirs solids to prevent clogging
-
Double mechanical seals in oil chamber for leak protection
-
Class H motor insulation for high thermal resistance
-
Shaft sleeve and lip seal system protect from abrasion
-
Thermal overload protection prevents overheating
-
Enhanced cable entry design for sealing and durability
KB
Easily compare the hydraulic performance of all KB submersible slurry pump models using this chart. It displays how flow rate (m³/h) varies with head (m) across different sizes, helping you select the most suitable pump for your specific needs. Whether it’s dewatering, abrasive slurry transfer, or continuous-duty operation, this graph supports efficient and reliable pump selection.
Model table Slurry pumps /KB
JST KB heavy-duty slurry pump range: models from 5.5 to 22 kW, head up to 60.5 m, capacity up to 3.15 m³/min, designed for abrasive fluids with solids up to 10 mm.
All models are equipped with 3-phase 200–600 V power supply.
Come with a standard 10-meter cable.
Construction Material:
-
Abrasion-resistant high chrome iron impeller and suction wear plate
-
Built-in agitator helps swirl up solids before discharging
-
Double mechanical seals housed in a separate oil chamber
-
Class H motor insulation for high-temperature endurance
-
Shaft sleeve minimizes wear caused by abrasives and corrosion
-
Lip seal protection keeps contaminants away from mechanical seals
-
Thermal overload protection guards against high amperage and overheating
-
Enhanced cable entry sealing system for improved durability
Dimensions(mm)
